Description
The device of imitation of loads per unit of length UIPN is designed to place reference weights on a moving conveyor belt in order to simulate a uniform linear load in the process of calibration and indirect verification batchers of continuous operation DWL at release from production and in operation.
The device is a set of trolleys hinged together. The trolleys are produced in three standard sizes: with two, three and four rollers on each axis (Fig. 1).

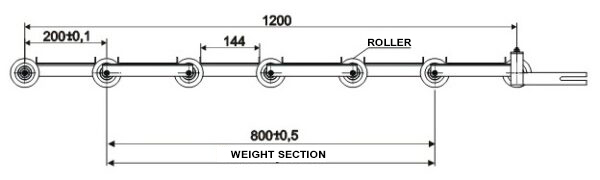

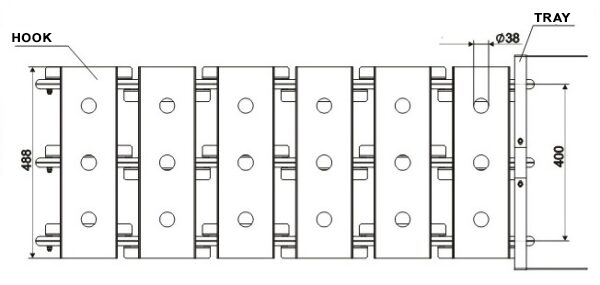

Figure 1 – The device of imitation of loads per unit of length UIPN
Figure 2 – Location of the device of imitation of loads per unit of length UIPN on the conveyor belt
