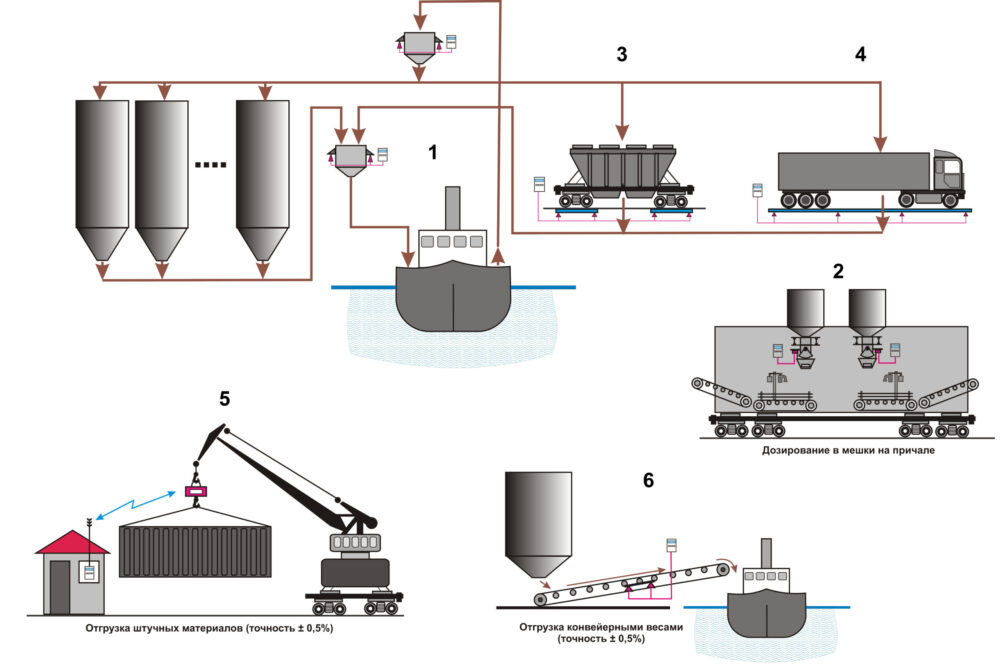

1 – Hopper scales SWEDA WBA, 2 – Weight batchers SWEDA DWS, Bag sweing lines SWEDA LZM,
3 – Railway wagon scales, 4 – Truck scales, 5 – Crane scales SWEDA VKR, 6 – Belt scales SWEDA VK
SPF “Sweda, Ltd” offers a full range of industrial electronic scales for use in ports:
- Hopper scales SWEDA WBA with electric and pneumatic drive and capacity up to 250 t/h;
- Crane scales SWEDA VKR underslunged type with a weighing limit from 3 tons to 30 tons;
- Belt feeders SWEDA VK with belt width from 500 mm to 1600 mm and capacity up to 3000 t/h;
- Batcher for bulk products in bags SWEDA DWS with a capacity up to 600 open-mouth bags/hour or 10-15 big-bags/hour;
- Bag sewing lines SWEDA LZM for sewing and transporting sewing bags with a length of 3 m and 5 m.
As you know, a large flow of goods is transported by sea and river transport. Therefore, the task of weighing and accounting for these cargo flows, including bulk products (grain, ore, coal, etc.), is urgent.
A variant of the scheme of such cargo flows and means of their control is shown in the drawing.
For example, when loading bulk products on a ship or unloading it, are used hopper scales 1. At the same time, manufacturers of scales ensure their productivity from 250 t/h to 2000 t/h and weighing and accounting accuracy up to ±0.1%.
Sometimes in ports there is a problem of packing bulk products after their unloading from the ship into bags of various types (open-mouth, valve, “big-bags”). This task can be solved by special filling complexes 2 of both stationary and mobile types. The complex usually includes, as a rule, special automatic batchers, sewing or transporting lines.
For accounting of cargo flows, wagon 3 and truck 4 scales are widely used wagon 3 and 4 truck scales . The carrying capacity of such scales can reach 80-100 tons and 150-200 tons, respectively, and the accuracy is ±0.1%. Such scales can take into accounting the mass of both bulk products and unit loads (for example, containers) transported by vehicles.
In ports, it is possible to use рrane 5 и belt 6 scales. Crane scales allow with high accuracy (up to ±0.1%) to control the weight of piece cargo, and belt scales with an accuracy of ±0.5% – continuously in the flow and quickly weigh and take into account the mass of bulk products when loading or unloading from a ship. In this case, the crane scales can be mounted both in the crane mechanism and hung on its hook. Belt scales mount directly on the conveyor load bearing structure.
As usual, all modern electronic scales described above and used in ports have external indication on large displays, communication with computers located at different points of the port can be connected to the dispatch center and the port’s cargo traffic accounting system.
Scientific and production firm “Sweda” has more than 25 years of experience in the production of weighing and batching equipment, including for ports. We offer the Customer a wide range of appropriate scales and batchers, services for their mounting and commissioning, the creation of freight traffic accounting systems based on these scales, and we invite you to cooperation.
